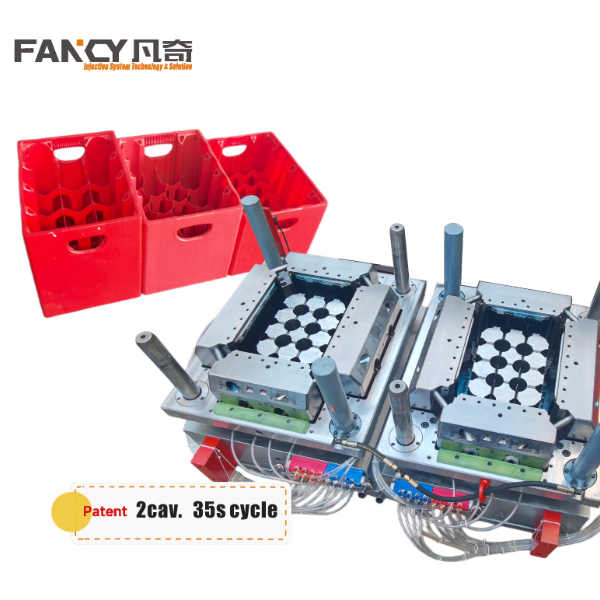

2cavity beer bottle crate mold
High quality high speed bottle crate mould
High production capacity injection crate mold high speed design for bottle crate and beer crate mold with injection cycle time within 30-35s. YUDO hot runner system and high production volume plastic molds
know more
Specification
| CRATE SIZE | 400X300X350 |
| MOULD STEEL | 718H |
| HOT RUNNER | 12 YUDO POINT GATE |
| MOULD SIZE | 1680X980X600 |
| CYCLE TIME | 33-38S |
| CLAMPING TONNAGE | 1000T |
Descriptions
High production capacity injection crate mold high speed design for bottle crate and beer crate mold with injection cycle time within 30-35s. YUDO hot runner system and high production volume plastic molds
Crate Molding Solution

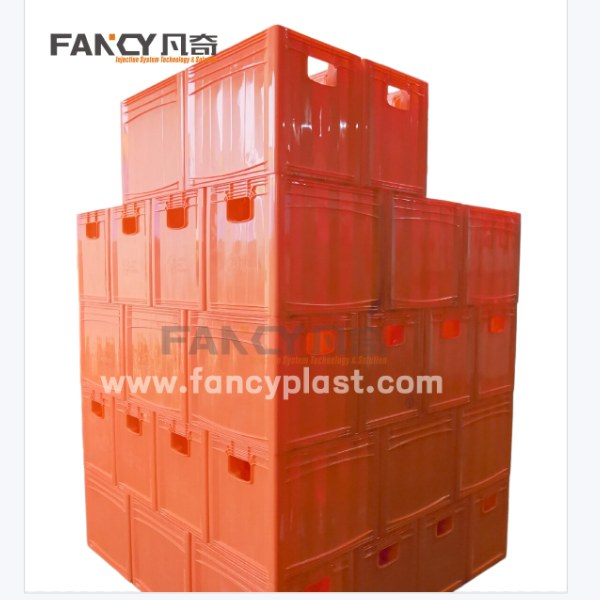

Plastic bottle crate mould with HDPE material, with high loading capacity and stackable , cross-stack bottle crate bottom design.

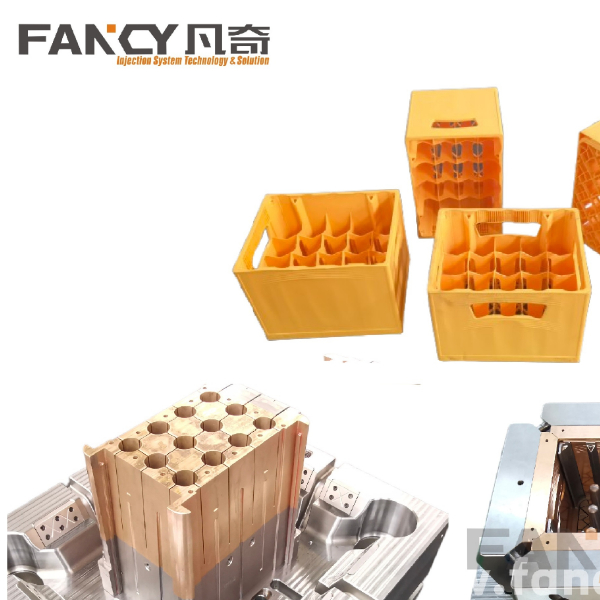

Bottle crate mold 12bottles, 16bottles, 24bottles.
- High speed injection crate molds with cycle time min.30-35s
- Light weight design solution: new idea and design mentality for easy handling and recycle material injection crate molds.
- Running on high speed injection molding machine tonnage can be 650T for single cavity upto to 1200T for double cavity bottle crate mould.
- Strong and easy molding design less you down-time for maintenance.
- Fast cooling design with CUBE insert on sliders , core of bottle sections as well as inclind lifters for the inside sliders of bottle crate moulds. The precision water temprature control also support bottle crate mould ejection without deformation.
- High precision tooling for inclind lifters during high speed movement is well designed on draft angle and limit stroke, which can control each cycle time, good cycle time and smooth ejection.
