5L square bucket mold injection mold manufacturer



5L IML Container Mold: Advanced In-Mold Labeling Solution

1L , 2L , 5L ,10L square bucket mold injection mold manufacturer making high speed injection mold with hot runner for square container and bucket with IML labeling finish.

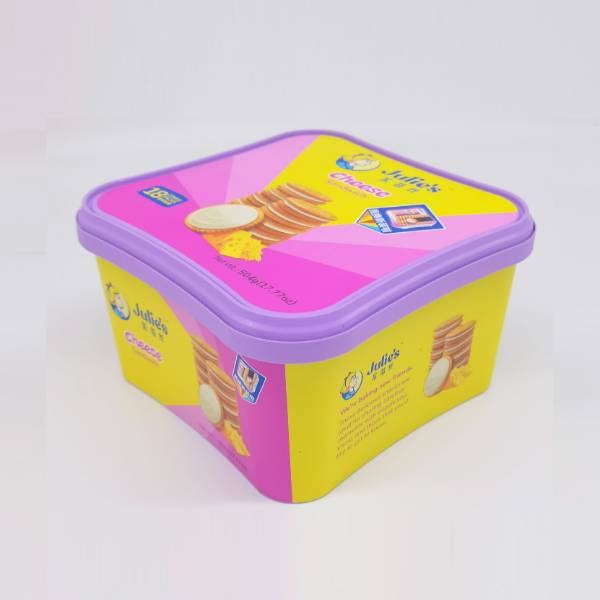

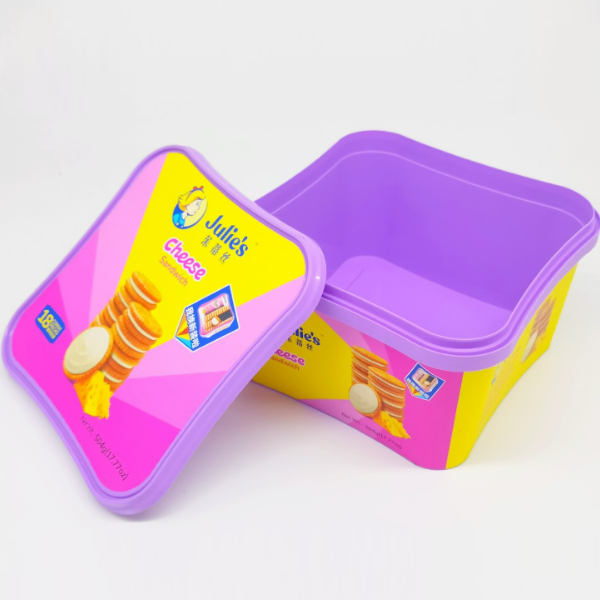

The  5L IML Container Mold is  designed for producing high-quality, in-mold labeled (IML) containers with precision and efficiency. This mold integrates IML technology to embed labels directly into the container during the injection process, eliminating post-molding decoration steps and ensuring seamless, durable, and visually appealing results.



 Key Features

1.  Integrated IML System

   - The mold incorporates a  robot IML label placement mechanism , enabling automatic insertion of IML labels into the cavity before injection.

   - Labels are permanently shining enhancing scratch resistance and longevity.



2.  High-Precision Tooling

   - CNC-machined cavities and cores ensure high dimensional accuracy , guaranteeing consistent wall thickness and perfect label alignment.

   - Multi-stage ejection systems prevent label distortion during demolding.



3.  Optimized Hot Runner & Cooling

   - A  hot runner system  minimizes material waste and ensures uniform melt distribution for defect-free containers.

   - Conformal cooling channels reduce cycle time by 15–20% while improving product stability.



4. Durability & Maintenance

   - Made from premium hardened steel (e.g., S136), the mold withstands high-pressure cycles and resists wear.

   - Modular design simplifies maintenance and label-format changes.



 Unique Selling Points (USPs)

-  Cost Efficiency : Combines molding and decoration in one step, reducing labor, energy, and material costs.

- Premium Aesthetics : Delivers vibrant, high-resolution graphics without peeling or fading.

-  Sustainability : Eliminates glue/ink waste and supports recyclable material use.

-  Scalability : Compatible with high-speed presses for mass production (7,000+ cycles/day).



 Applications

Ideal for food packaging, household chemicals, and industrial storage, the 5L IML Container Mold meets stringent hygiene and durability standards. Its flexibility supports diverse label designs, catering to branding and regulatory needs.



By combining IML innovation with precision engineering, this mold offers manufacturers a competitive edge in quality, speed, and sustainability.

Cavity: 2cavity
Mold material: S136 stainless steel with HRC45-48
Hot runner:  YUDO hot runner
Mold charactor: IML solution for disposable cup design
Cycle time: 6-8s
Life time: 5Million
